Krieghoff Ejector Springs

The Krieghoff Ejector Springs

These Ejector Springs are vital for the ejection of cartridges from your K-80. They are connected to the Ejector Hammer in the forearm iron, which in turn connects to the ejectors in the barrels. As they are among the many parts constantly in use on a K-80, they do eventually become tired and lose their strength. So if you feel your ejectors are becoming a bit weak and you think it's time to fit fresh ones, then the option is now available.

Each Ejector requires TWO Ejector Springs. So there are FOUR Springs in total in a Krieghoff K-80.
Supplied as a Set of Four, as we'd always recommend changing all springs together.

NOTE: There are two options of Ejector Springs!
You can check inside your forearm iron to see which ones you require.

If your Ejector Hammer is 15mm, you have the New Model Forearm Iron, with the Shorter Ejector Hammer - You will require the Longer Ejector Springs of 50mm.

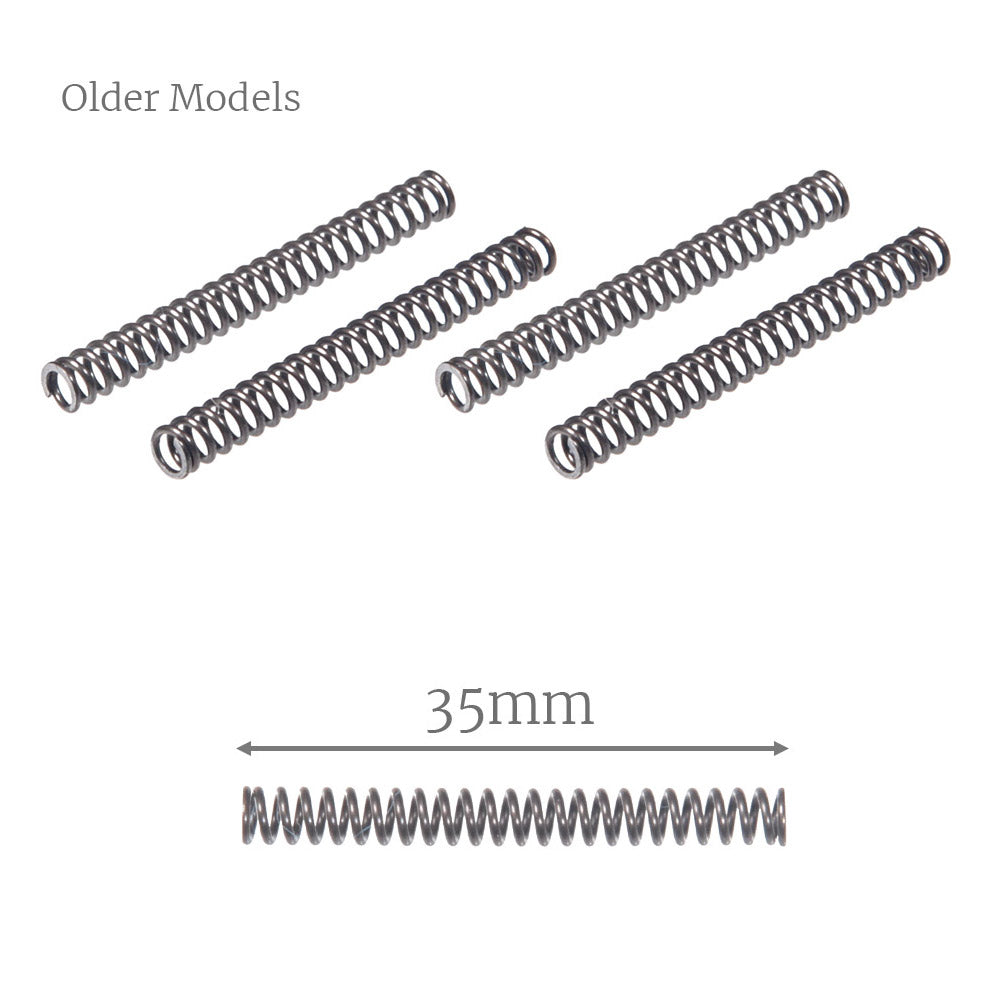

If your Ejector Hammer is 25.4mm, you have the Older Model Forearm Iron, with Longer Ejector Hammer - You will require the Shorter Ejector Springs of 35mm.

The Ejector Springs do require fitting to your K-80 and some basic tools are required to do this. This process is straight forward to do and is illustrated in an instructional video below.

When replacing the Ejector Spring we recommend using Schmierfix Grease
