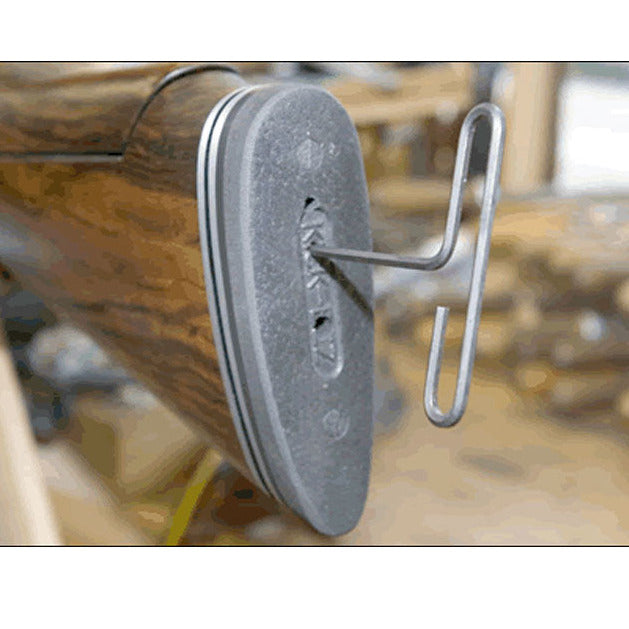

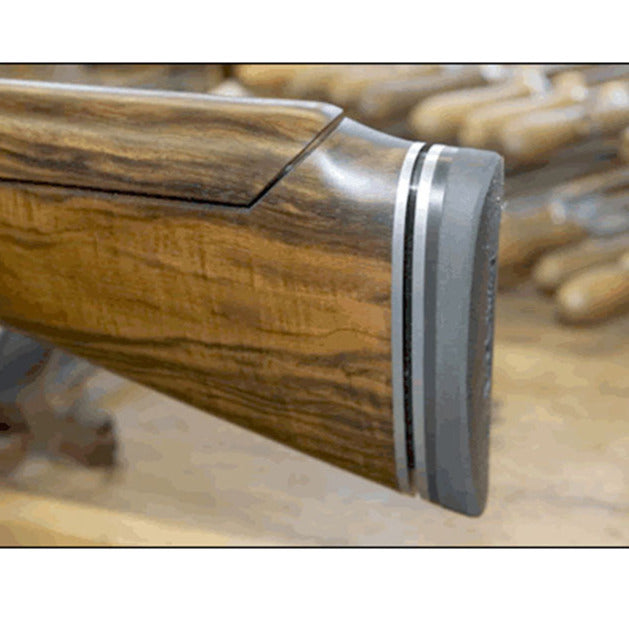

The Jones Thru-the-Pad Adjuster allows for all pad adjustments without having to remove the pad. It locks up solid and does not move in use. This new model is a little thicker than the Original Jones Pad Adjuster but but has a wider range of movement. Provides up to 1.5" (38mm) vertical drop, 32 degrees diagonally right or left, & 1/4" (6mm) horizontal offset of the recoil pad.

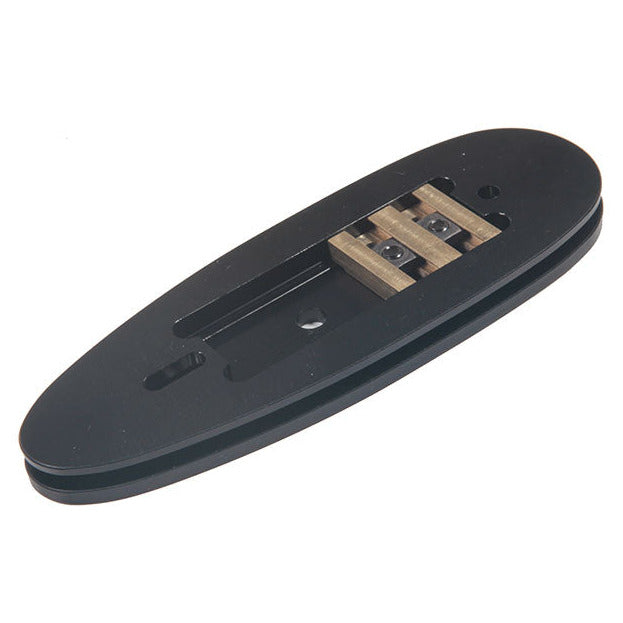

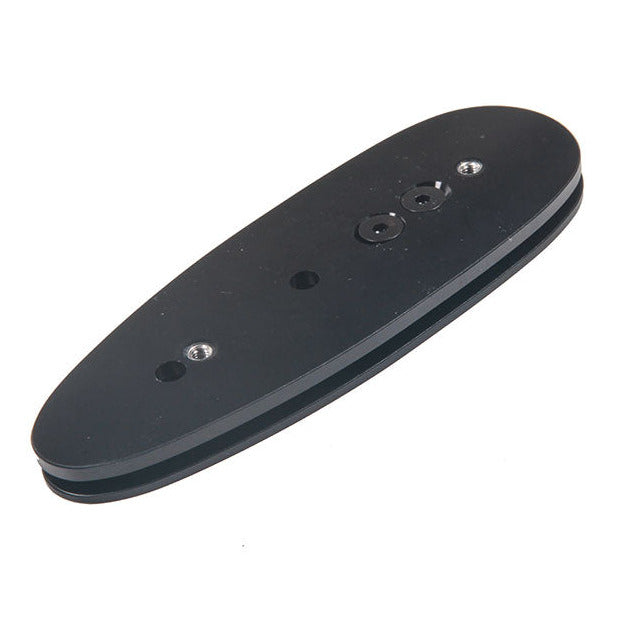

Machined steel thread inserts. Machined 6061 aluminium with a black anodized finish. The weight of the unit is 130g without fitting. As these a fitted by grinding them to the same size as your stock, material is taken away and this reduces the weight.
We recommend that you install the Jones Thru-the-Pad Adjuster with one of our Kick-Eez pads. Mounting hardware is included.
Dimensions of Plate:
Length:5-3/4" (14.6cm),
Width:2" (5cm),
Thickness: 0.4" (9.5mm).

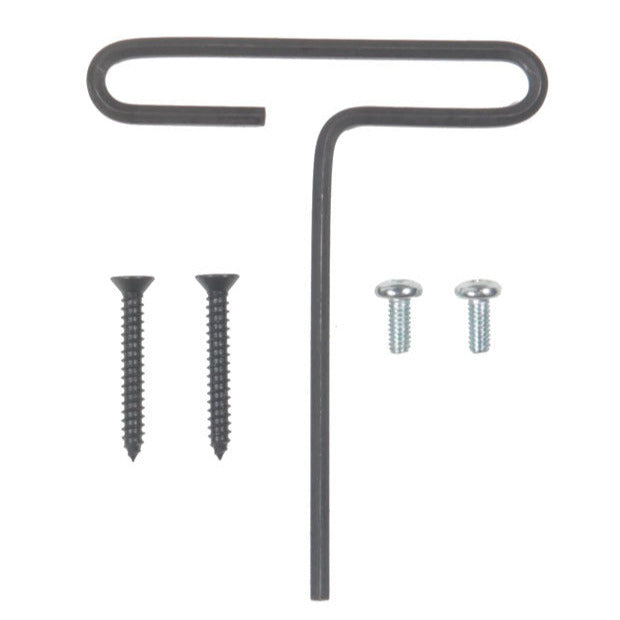

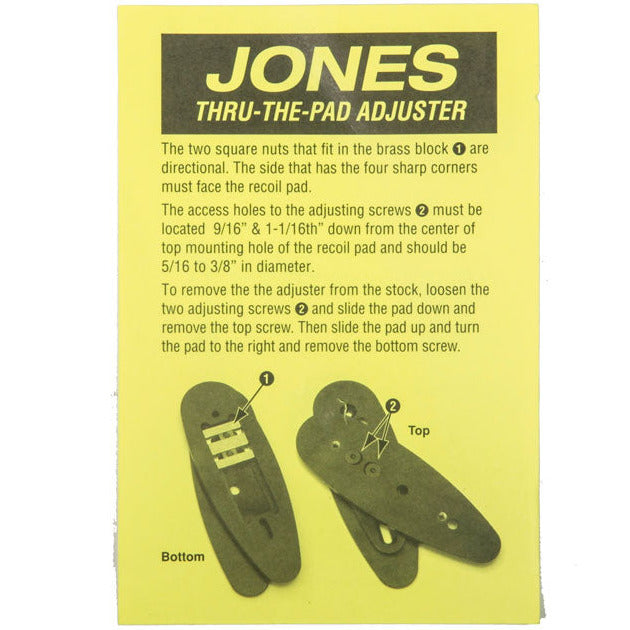

Fits recoil pads with 3-1/8" (79.4mm) hole spacing. Includes hardware and instructions.
We fit Jones Thru-the-Pad Adjusters We can also arrange for the Jones Thru-the-Pad Adjuster to be fitted to your stock by our fully trained and experienced gunmaker. Contact us for further details on 01978 66 00 01.
